Opel Corsa B 1993–2000 Service and Repair Manual: Maintenance - component location

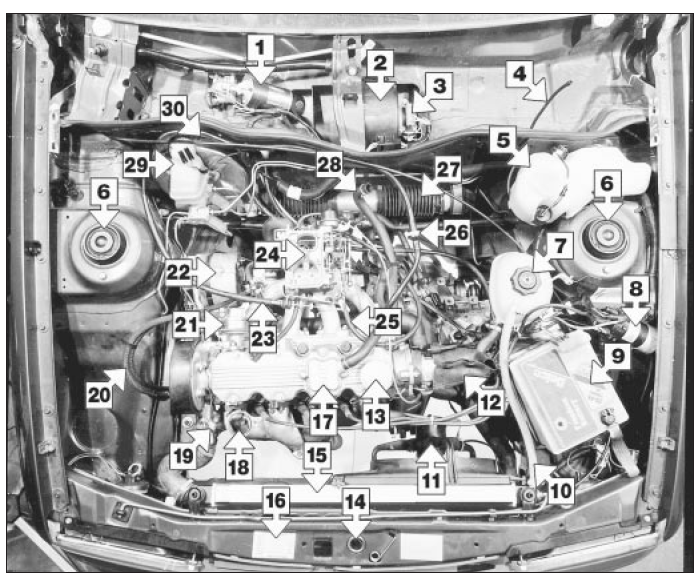

Underbonnet view of an early 1.6 litre model (air cleaner removed for clarity)

  1. Wiper motor
  2. Heater blower motor
  3. Heater blower motor resistor
  4. Windscreen washer tube
  5. Screen washer reservoir
  6. Suspension turrets
  7. Coolant expansion tank
  8. Ignition coil
  9. Battery
  10. Coolant hose
  11. Radiator cooling fan
  12. Distributor cover
  13. Engine oil filler
  14. Bonnet catch
  15. Radiator
  16. VIN plate
  17. Engine breather
  18. Air cleaner hot air pick-up
  19. Thermostat housing
  20. Fuel hoses
  21. Fuel pump
  22. Alternator
  23. Accelerator cable
  24. Carburettor
  25. Choke cable
  26. Servo non-return valve
  27. Steering rack bellows
  28. Air cleaner breather hose
  29. Brake fluid reservoir
  30. Brake servo

Underbonnet view of an early 1.6 litre model (air cleaner removed for clarity)

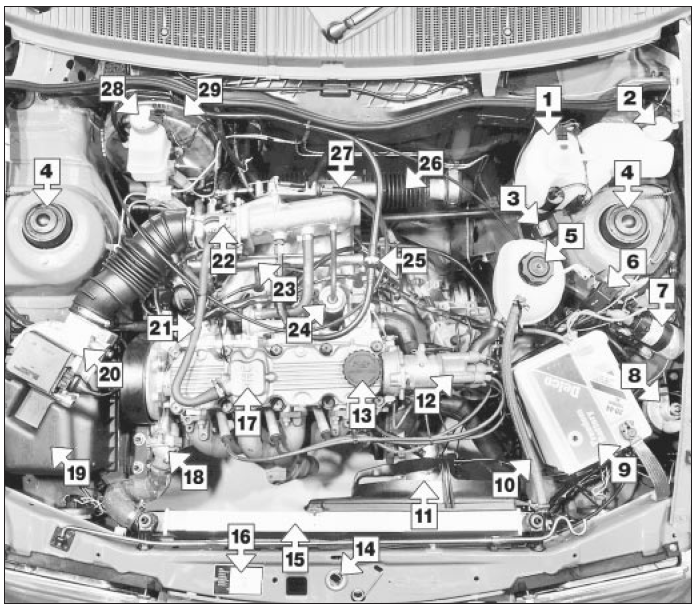

Underbonnet view of an early 1.8 litre model

  1. Screen washer reservoir
  2. Headlamp washer filler cap
  3. Headlamp washer relay and fuse
  4. Suspension turrets
  5. Coolant expansion tank filler
  6. Control relay (fuel injection system)
  7. Ignition coil
  8. Horn
  9. Battery
  10. Coolant hose
  11. Radiator fan
  12. Distributor
  13. Engine oil filler
  14. Bonnet catch
  15. Radiator
  16. VIN plate
  17. Engine breather
  18. Thermostat housing
  19. Air cleaner
  20. Airflow meter
  21. Breather hose
  22. Throttle valve housing
  23. Fuel rail
  24. Fuel pressure regulator
  25. Servo non return valve
  26. Steering rack bellows
  27. Accelerator cable
  28. Brake fluid reservoir
  29. Brake servo

Underbonnet view of an early 1.8 litre model

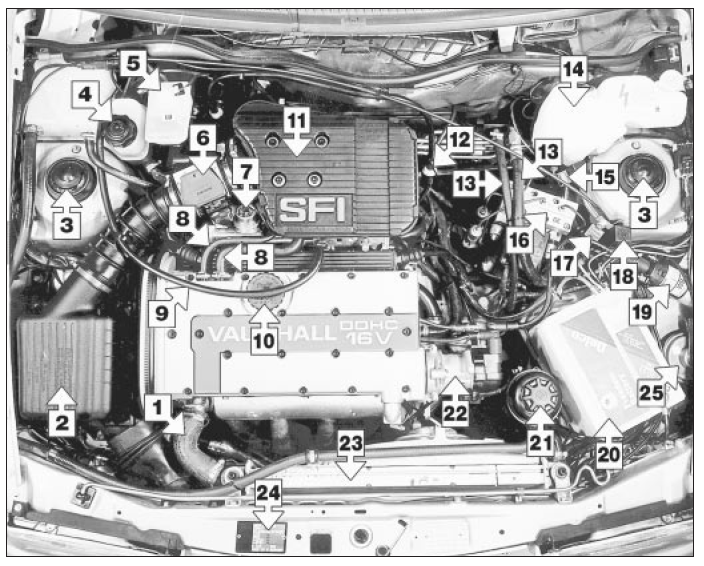

Underbonnet view of a 2.0 litre 16-valve model

  1. Radiator top hose
  2. Air cleaner
  3. Suspension turrets
  4. Coolant filler cap
  5. Brake fluid reservoir
  6. Air mass meter
  7. Fuel pressure regulator
  8. Breather hoses
  9. Throttle cable
  10. Engine oil filler cap
  11. Pre-volume chamber
  12. Brake servo non-return valve
  13. Power steering hoses
  14. Windscreen washer reservoir
  15. Headlamp washer relay
  16. ABS hydraulic unit
  17. ABS surge arrester relay
  18. Fuel injection control relay
  19. Ignition coil
  20. Battery
  21. Power steering fluid reservoir
  22. Distributor
  23. Radiator
  24. Vehicle identification plate
  25. Horn

Underbonnet view of a 2.0 litre 16-valve model

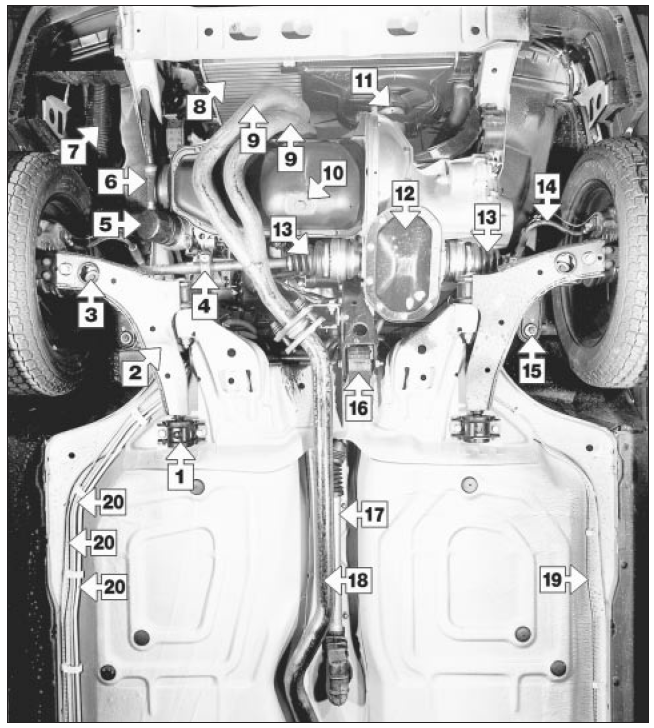

Front underbody view of a 1.8 litre model - other models similar

  1. Control arm rear bush
  2. Control arm
  3. Anti-roll bar link
  4. Driveshaft damper weight
  5. Engine oil filter
  6. Oil cooler hose
  7. Air induction trunking
  8. Radiator
  9. Exhaust downpipes
  10. Sump drain plug
  11. Radiator fan
  12. Gearbox sump
  13. Driveshaft bellows
  14. Brake hose
  15. Steering balljoint attachment
  16. Engine/transmission rear mounting
  17. Gearchange tube
  18. Exhaust pipe
  19. Brake pipe
  20. Brake and fuel pipes

Front underbody view of a 1.8 litre model - other models similar

    Maintenance schedule
    Every 250 miles (400 km) or weekly See Weekly checks Every 9000 miles (15 000 km) or 6 months, whichever comes first Renew the engine oil and filter - early (pre-1987) models Every 9000 ...

    Maintenance - introduction
    Rear underbody view of a 1.8 litre model - other models similar Centre silencer Handbrake adjuster Handbrake cables Fuel tank Brake pipe Brake and fuel pipes Brake hoses Axle beam ...
