Opel Corsa B 1993–2000 Service and Repair Manual: OHV engine
Opel Corsa B 1993–2000 Service and Repair Manual / OHV engine
Specifications
General
Valve clearances (warm)
Cylinder head

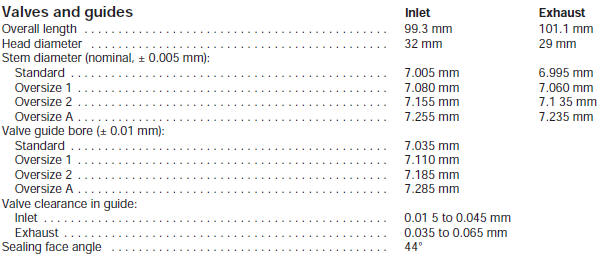

Valves and guides
Camshaft

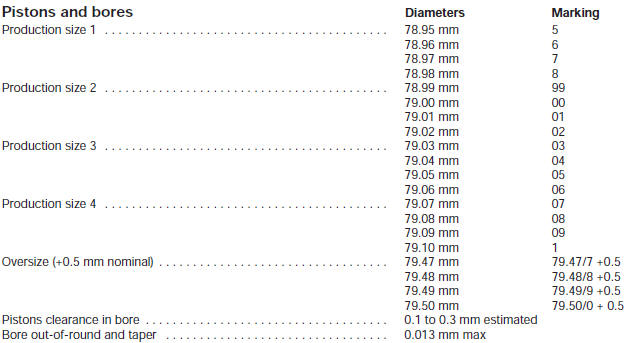

Pistons and bores

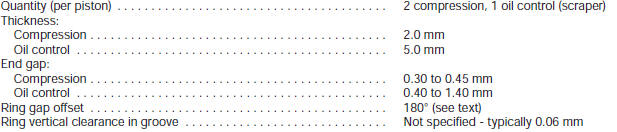

Piston rings
Gudgeon pins

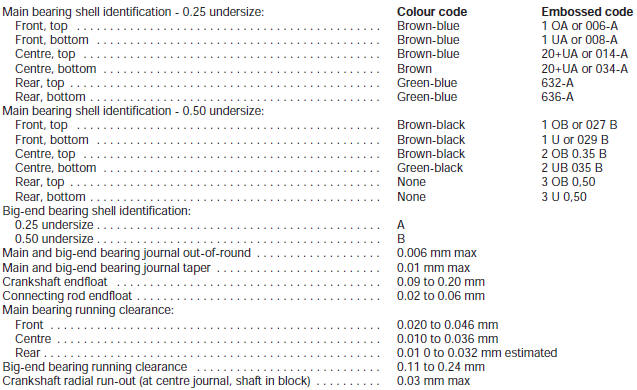

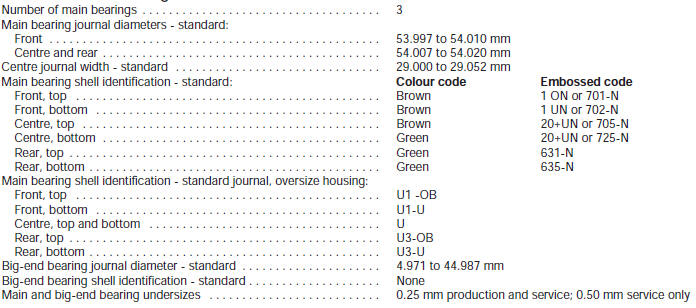

Crankshaft and bearings
Flywheel
Lubrication system

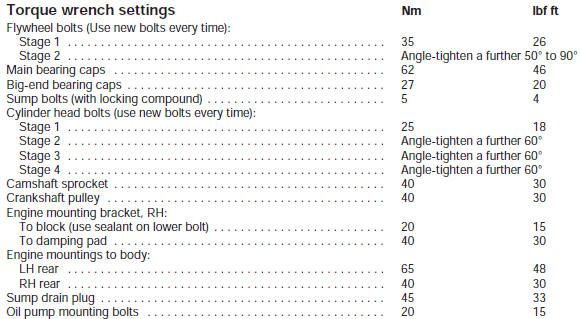

Torque wrench settings
Every 36 000 miles
Automatic transmission fluid
renewal
1. Allow the transmission to cool down before
draining, as the fluid: can be very hot indeed.
2. Remove all the fluid pan screws except one
which should be un ...
General description
The engine is of four-cylinder. in-line
overhead valve type, mounted transversely at
the front of the car.
The crankshaft is supported in three shell
type main bearings. Thrustwashers are
incor ...
See also:
Opel Corsa B 1993–2000 Service and Repair Manual. Water pump - removal and
refitting
Removal
1. Drain the cooling system then disconnect the battery earth
lead. Proceed as described under the relevant
sub-heading.
1.2 litre models
2. Remove the auxiliary drivebelt.
3. Slacken th ...
