Opel Corsa B 1993–2000 Service and Repair Manual: Wind deflector - removal and refitting

Removal

1. The wind deflector fills the gap between the rear of the bonnet and the base of the windscreen.

2. Remove both windscreen wiper arms.

3. Remove the wind deflector securing screws (see illustrations).

Bodywork and fittings

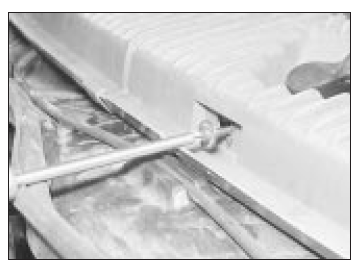

Wind deflector screw at the wing

Bodywork and fittings

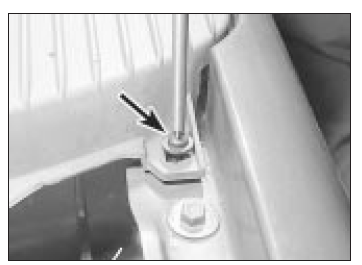

Wind deflector screw near the wiper

4. Free the wind deflector from its clips and remove it. Disconnect the windscreen washer hoses as it is withdrawn.

5. The two halves of the wind deflector can be separated if wished by pulling them apart.

Each half may also be removed individually, leaving the other in place.

Refitting

6. Refit in the reverse order to removal.
