Opel Corsa B 1993–2000 Service and Repair Manual: Reference
General dimensions and Weights
Dimensions and weights
Note: All figures are approximate, and may vary according to model. Refer to manufacturer's data for exact figures.

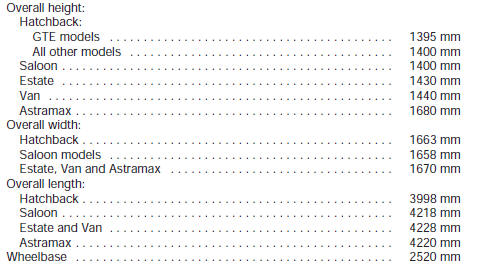

Dimensions

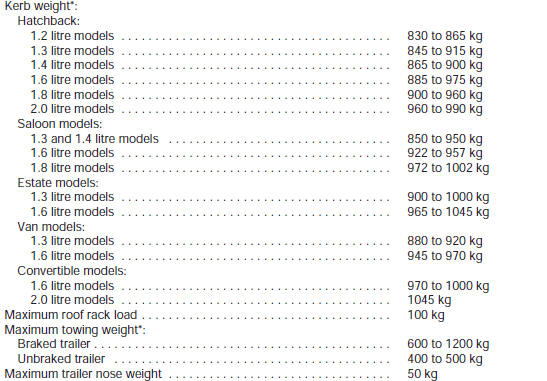

Weights
*The kerb weights and maximum permissible towing weights given are for general reference. The weights can differ according to model and year, therefore, if specific weight requirements are wanted for a particular model, consult your vehicle handbook or a Vauxhall dealer
Conversion Factors
Length (distance)

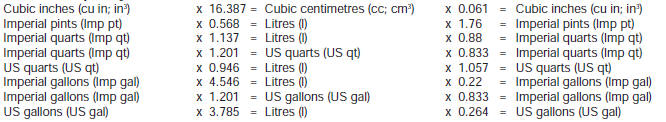

Volume (capacity)
Mass (weight)
Force

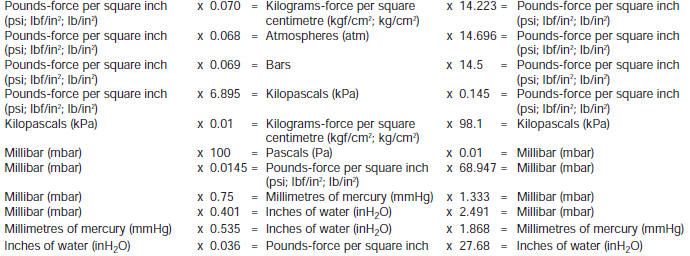

Pressure

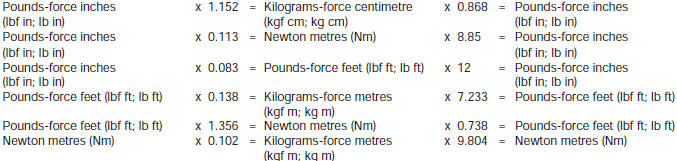

Torque (moment of force)
Power
Velocity (speed)
Fuel consumption*
Temperature
* It is common practice to convert from miles per gallon (mpg) to litres/100 kilometres (l/100km), where mpg x l/100 km = 282
Wiring diagrams
Key to Diagram 1 - all models to 1986 (Not all items are fitted to all
models)
Key to Diagram 1 - all models to 1986 (Not all items are fitted to all
models) (continued)
Colour c ...
Buying spare parts
Spare parts are available from many
sources; for example, Vauxhall garages, other
garages and accessory shops, and motor
factors. Our advice regarding spare part
sources is as follows.
Official ...
