Opel Corsa B 1993–2000 Service and Repair Manual: Fuel and exhaust systems - carburettor models
Opel Corsa B 1993–2000 Service and Repair Manual / Fuel and exhaust systems - carburettor models
Specifications
Fuel pump

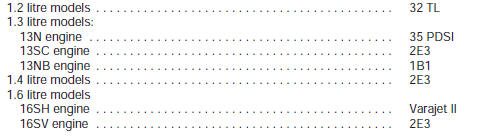

Carburettor application

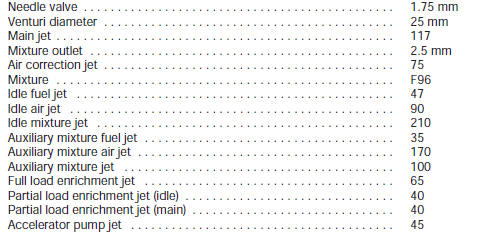

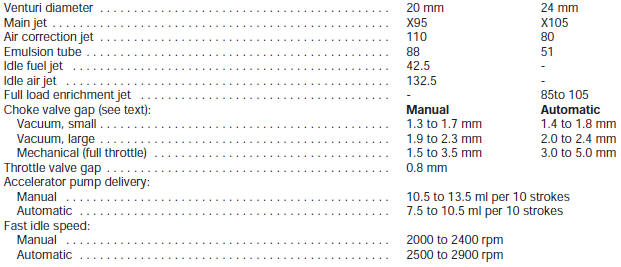

32TL Carburettor data - 12SC engine

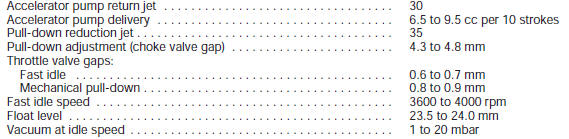

32TL Carburettor data - 12SC engine (Continued)

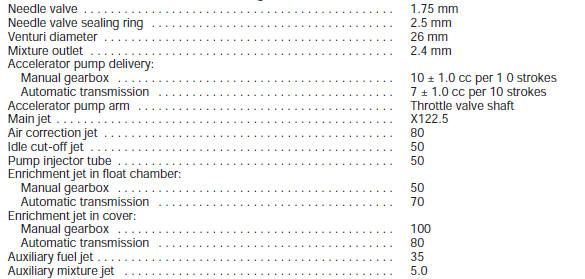

35 PDSI Carburettor data - 13N engine

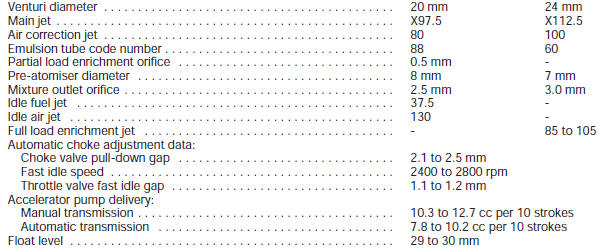

2E3 Carburettor data - 13SC engine

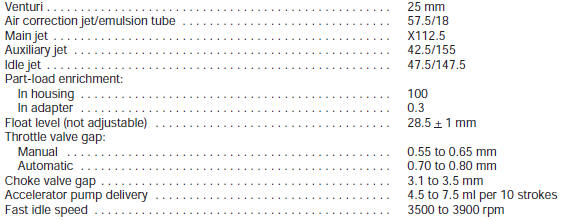

1B1 Carburettor data - 13NB engine

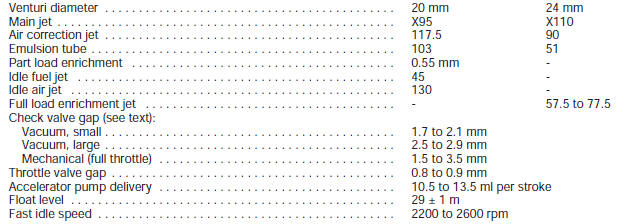

2E3 Carburettor data - 14 NV engine

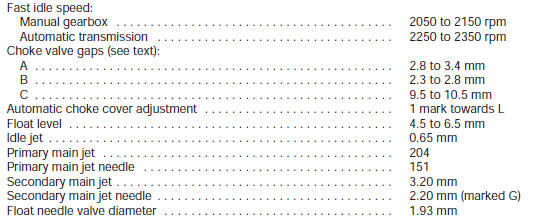

Varajet II Carburettor data - 16SH engine
2E3 Carburettor data - 16 SV engine
Idle speed adjustment data

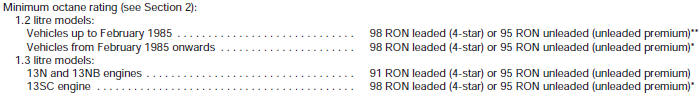

Recommended fuel grade
Recommended fuel grade (Continued):

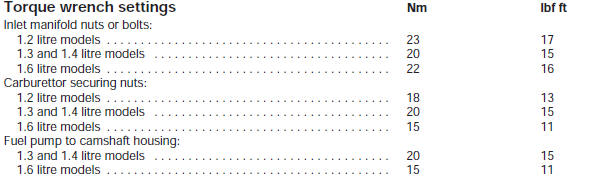

Torque wrench settings
Vents and grilles - removal
and refitting
1. The flat grilles at each end of the facia
simply unclip. According to equipment level
they may also cover a loudspeaker (see
illustration).
Removing an end grille and speaker
2. The swivel ...
General information
The fuel system consists of a fuel tank
mounted under the rear of the car, a
mechanical fuel pump and a carburettor. The
fuel pump is operated by an eccentric on the
camshaft and is mounted on the ...
